The Learning Dashboard

In order to guide student learning, and improve learning outcomes, learning data must be actionable.

As students engage with Acrobatiq's Learn by Doing activities, they produce a rich data stream on the learning process. This data is generated and captured by the Acrobatiq analytics engine to support data modeling and yield actionable insights for instructors via the Learning Dashboard

With the Learning Dashboard instructors can:

• Reveal what students do/do not learn
• Quantify how well students have learned each learning objective
• Identify consequential patterns in students’ learning behaviors
• Provide targeted support to struggling students
• Measure effectiveness of instructional design and identify underperforming content
• Personalize the learning experience for students

Access the Learning Dashboard

Access the Learning Dashboard through the link in the Profile Menu or My Courses page:

Learning Dashboard Basics

The Learning Dashboard is a collection of inquiry-based cards that presents data about a specific aspect of learning or engagement in an easily accessible way.

Types of Cards

Each card answers one or more questions about student learning or engagement using real time data. Cards can be filtered or sorted by learning objective(s), module(s), and population (students) to display different or more granular information. There are six standard cards, each answering a specific question:

1. How well are my students learning? Compares student Learning Estimates on learning objectives to the amount of available practice a student has completed.
2. Which objectives are my students having difficulty with? Shows student Learning Estimates and formative activity completion for each learning objective. View this information for all or select students, and drill into each learning objective to see individual student data.
3. Which students are having difficulties?  Compares student Learning Estimates to the amount of formative activities a student has completed. This view can be filtered by learning objective(s), module(s), and population (students).
4. Which activities are my students having difficulty with? Shows the percent of students who have attempted an activity at least once and their rate of first attempt accuracy on the questions in the activity. The activities view can be filtered by population (students), module(s) and activity purpose (practice and/or assessments). NOTE: This card is only available in courses with <150 students—see individual student work for student level data on activities.
5. How are my students engaging with the course?  Shows student work by module and relates that to accuracy, activity completion, pages viewed, and time spent.
6. How often are students visiting the course? Shows how often students are logging in as well as number of page views and average session length.

How to View Cards

All cards are based on commonly asked questions.  To access the full set of data for a particular inquiry, click an inquiry or a card from the left side navigation panel. Hover over the navigation bar on the left to expose the questions.

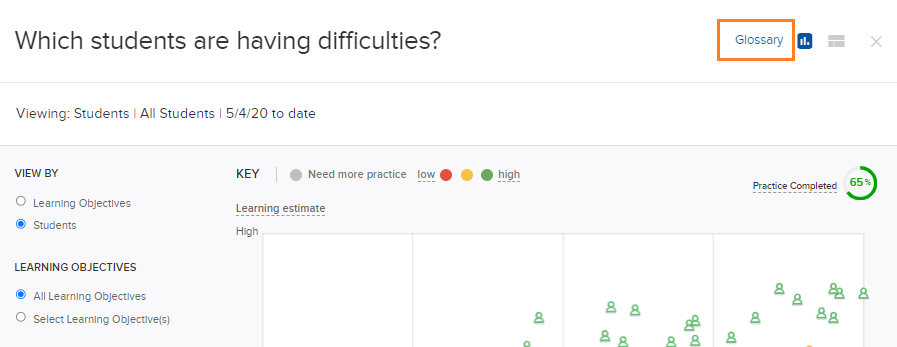

All cards share terminology which can be reviewed in the Glossary and basic filtering tools. Access the Glossary by clicking the button on the top right corner of every card:

When you click on an inquiry or its card, a detailed view of the data becomes available. Depending on the kind of data, various manipulations or actions are possible:

• Switch between graphical and tabular views of the data.

• Filter the data based on pertinent parameters, such as population (all or selected students), time, learning objective, location in the course (units and modules), and other parameters.

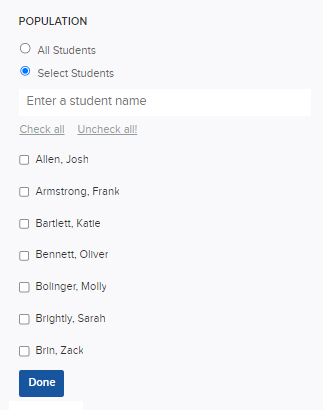

  You can also select subsets of students to create a custom card for a specific cohort:

All cards contain useful tooltips to assist you in understanding the data.  Roll-over any underlined item to see the tooltip.

How to Customize and "Pin" Cards

The most commonly used data may be pinned to your dashboard in the form of cards that provide a basic overview of the data used to answer the question or views for specific students or cohorts of students, or specific activities or Learning Objectives. To do this:

1. Click the left navigation to choose a card.
2. Use the Filters on the left of the card to a select the criteria for viewing. Cards can be filtered by Module(s), Learning Objective(s), and/or student(s)
3. Click Add card to dashboard in the bottom-right corner of the card.

The filtered view is now a saved card on your Dashboard. Select the card from the left navigation again and save with a different filter for quick access.

Create as many unique cards as you like, and add a new card any time.

After creating a new card or making modifications, be sure to click the blue Save Changes button in the bottom-right corner of the card.

How to Export Card Data

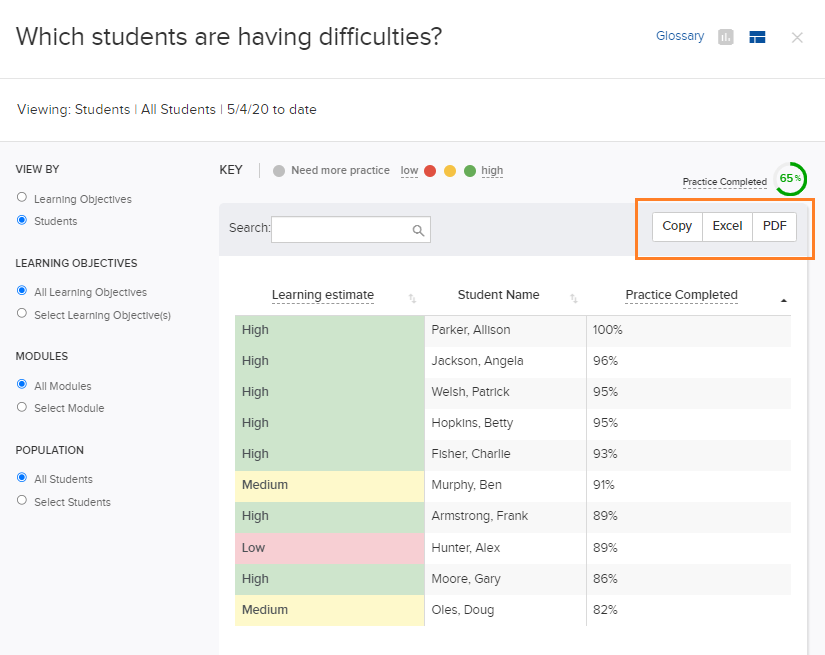

At the top right of every card, there is an icon that allows you to change the view to table format.

In table view, you may export the data by printing, creating a PDF, creating a CSV-format spreadsheet, or copying the data to your clipboard so that you can paste it into an existing document or email.
